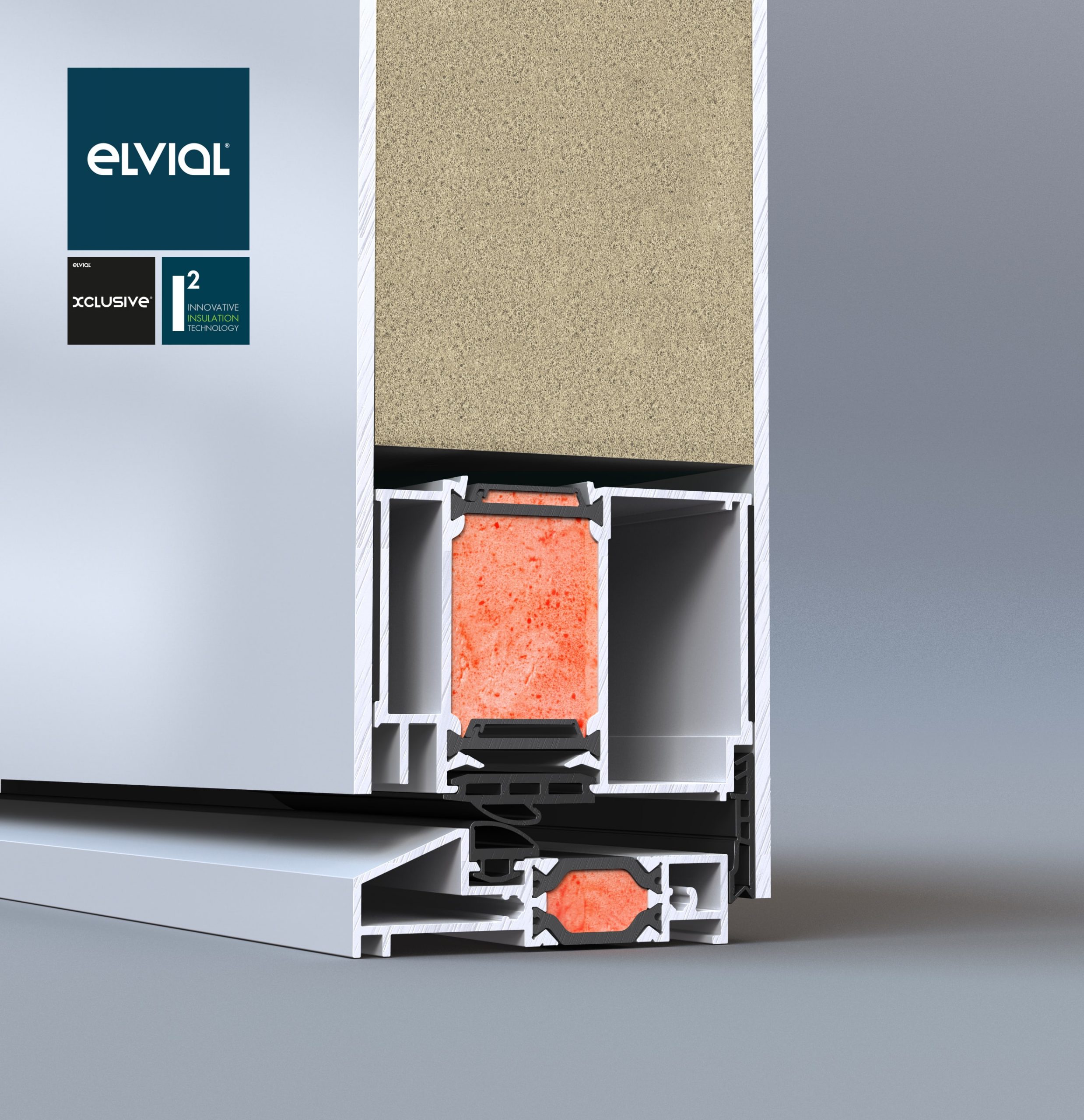

XCLUSIVE 88i2 Main Entrance

FEATURES + BENEFITS

The NEW Entrance System XCLUSIVE 88i2
sets new standards in
Energy Efficient Doors,
offering countless design options
with a basic depth of only 77mm.

OUTSTANDING THERMAL INSULATION

Uf: > 1.69 W/m2K
Ud* : 1.2 W/m2K with panel 28mm (Up: 1.0)
Ud* : 0.95 W/m2K with panel 77mm (Up: 0.6)

Three insulation levels:

• Optimized foam-filled insulation zone (ELVIAL I2 Technology)

  that ensures excellent isothermal flow of the window.

• Multi-chamber polyamide bars, maximum size 34mm with

  glass fibers reinforcement 25%,for excellent

  insulation and extra rigidity.

• Specially designed central gasket with 5 cavities that covers

  all the polyamide surface and glazing/panel gaskets with fins,

  for effective heat transfer minimization.

SECURITY

Cerifed Security Level RC3 (WK3) thanks to its compatibility with
wide range of security and anti-burglar locks. Compatible with
electronic access control systems. Locking System: Locks “U”
type 24x6mm.

DURABILITY FOR A LIFETIME

HH: Width up to 1.450mm /sash Height up to 2.550mm
Weight up to 150kg/sash

T4: Width up to 1.400mm /sash Height up to 2.350mm
Weight up to 220kg/sash

Glazing up to 60mm Panel up to 77mm

Perfect functionality:

• 3 Axis polyamide alignment corners with channels for glue

  inflow, for extra rigidity of the final product.

• Re-enforced profile wall thickness (1.5 – 1.8mm) with high

  values of moment of inertia, suitable for wide and complex

  constructions.

ADVANCED SEALING SYSTEM, CONSISTED OF:

• 3 Level Sealing System with EPDM gaskets and continuous

  central gaskets on Sash, Frame and Threshold

• EPDM corners for both central gaskets and the outer glazing

  gasket

  Innovative Mullion End Cap made of TPV material, sealing

  perfectly onto the profile, ensuring excellent water tightness

BASIC DEPTH

FRAME: 77mm SASH: 77mm

MINIMUM FACE WIDTH

Κ-Φ: 141.2mm Τ: 82mm

EXTRA FEATURES

• Anti-distortion glass fiber polyamides used on ALL sash

  profiles, in order to avoid the malfunctions caused by the

  profile expansion and contraction due to extreme temperature

  changes (banana effect).

• Easy-access threshold of 20mm.

  Option of automatic wind break.

  Optional use of various hinges (hidden hinge, external heavy

  duty hinge).

DESIGN FREEDOM

• Upgraded face-fitted door constructions that add value on

  the building’s image

• Inward-opening and Outward-opening versions are available

  in ALL typologies

  • Single sash doors

  • Double sash doors

  • With fixed parts and/or with skylight

• Leaf-enclosing infills are available on one side or both sides of

  the sash

• Customized Dr.Hann Rollenband hinges available, in addition

  toexternal and cocealed ones.
